Automatic Temperature Warning Function
Automatically alerts when flammable gas remains.
Fire Detection
Fire Predator
A helmet-mounted thermal detection device for locating residual fires and hot spots in real time
A helmet-mounted system that lets firefighters and wildfire crews keep both hands free while identifying heat sources and people through smoke and sharing field video and location data with an integrated command center.
Deployment information
Quotation after reviewing site requirements
Hands-free detection
Why is a Helmet-Mounted Thermal Camera Necessary?
The hands-free configuration allows crews to locate residual fires, hot spots near combustible gases, and people through smoke without holding a device, improving continuity during search and suppression operations.
Key features
Fire Predator Key Functions
Identifying Rescuers in Smoke
Reduces Rescue Time.
Integrated Control
Real-time communication support enables integrated firefighting team management and forest fire situation reporting.
Hands-Free Function
Helmet-mounted for easy fire management.
Field workflow
How Thermal Imaging Changes Residual-Fire Suppression
Rapidly locating residual embers and hot spots improves field response while reducing the time and workload required for suppression operations.
Fire detectioncapabilityimproved bymore than 20 times
Working timereduced bymore than 20 times
Working intensityreduced bymore than 5 time
Field evidence
Residual-Fire Suppression Sites and Re-Ignition Risks
Conventional sites often lack equipment for directly detecting remaining embers, making operations difficult and time-consuming while leaving a risk of wildfire re-ignition.
- 01Residual-Fire Suppression Site
- 02News about wildfire reignition
- 03Residual-Fire Re-Ignition Process
Connected command

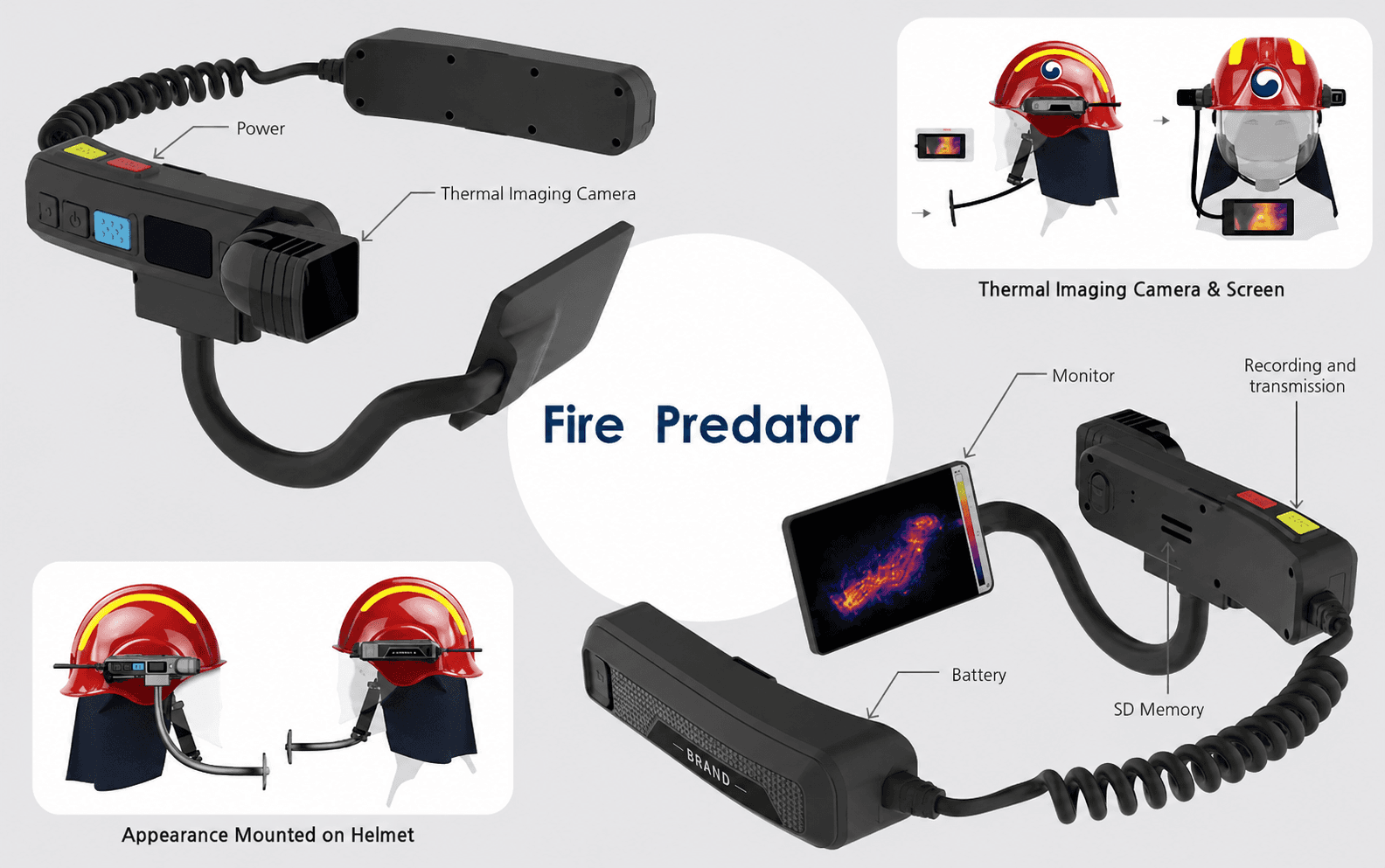

Real-time Field Confirmation of Heat Source and Temperature
Real-time communication sends thermal information and site conditions while tracking crew locations. It supports field decisions by identifying areas at risk of residual-fire re-ignition.
Full specification
Fire Predator detailed specifications
| RAM+ROM | 4+64GB | Frequencies | 3G: WCDMA B1/B2/B5/B8 4G: TDD-LTE B34/B38/B39/B40/B41 |
|---|---|---|---|
| Extend Memory | Up to 256GB | WIFI | WIFI 2.4G/5G, Support 802.11 a/b/g/n/ac |
| Card Slot | micro TF card ×1 Nano SIM×1 | Bluetooth | BT 5.0 |
| Screen | 3 inches | Navigation | GPS/Beidou |
| Battery | 3600mAh | USB Type-C | Charging, download etc |
| Dimension | 229.4×215.8×31.4mm | Speaker | Support 2W |
| Weight | ≈360g | Sensors | Gravity Sensor, Gyroscope, Light Sensor |
| Camera | Used for thermal imaging detection, the large screen can display imaging and detection temperature | ||
| Temperature measurement range | -20~150℃ (High image) 50~550℃ (Wide range) | Flashlight | 1W |
| Measuring distance | 20~40m | Microphone | Dual mics (1 main mic, 1 sub mic) |
| IP level | IP66 | Standby time | ≥16 hours |
| The way to wear | Helmet mounted | OS | Android 12 or above |
Wearable use

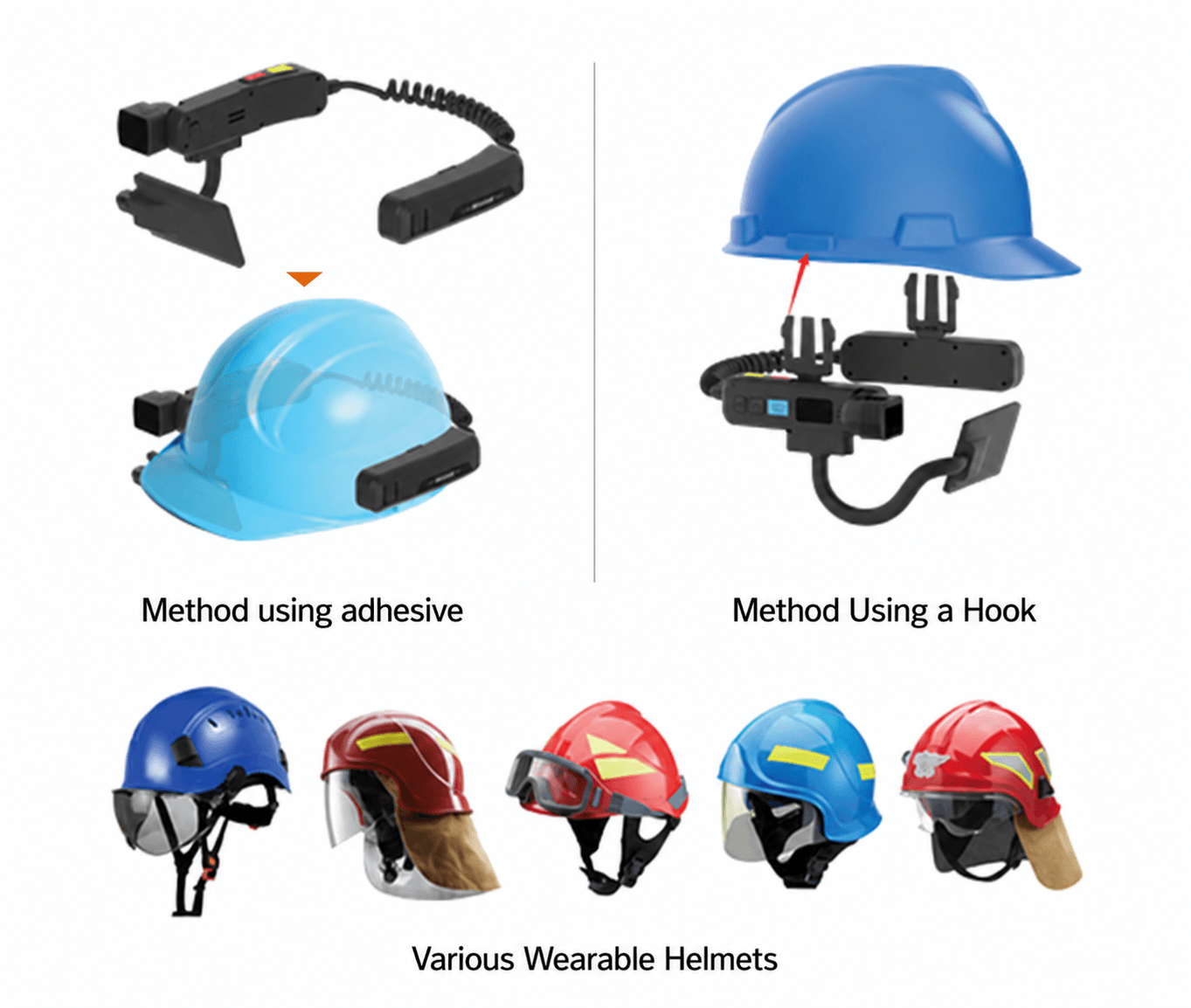

Appearance Mounted on Forest fire Suppression Helmet
Industrial safety
From firefighting to preventive industrial inspection
The device can locate potential overheating in power, smelting, petrochemical, machinery, coal, transport, and defense facilities to support preventive inspection against equipment failures and safety incidents.
Product consultation
Discuss your requirements and product configuration
Tell us about your operating environment and requirements, and we will recommend a suitable deployment approach.
